FEATURES

• Pure Sine Wave Inverter
• Built-in MPPT solar charge controller

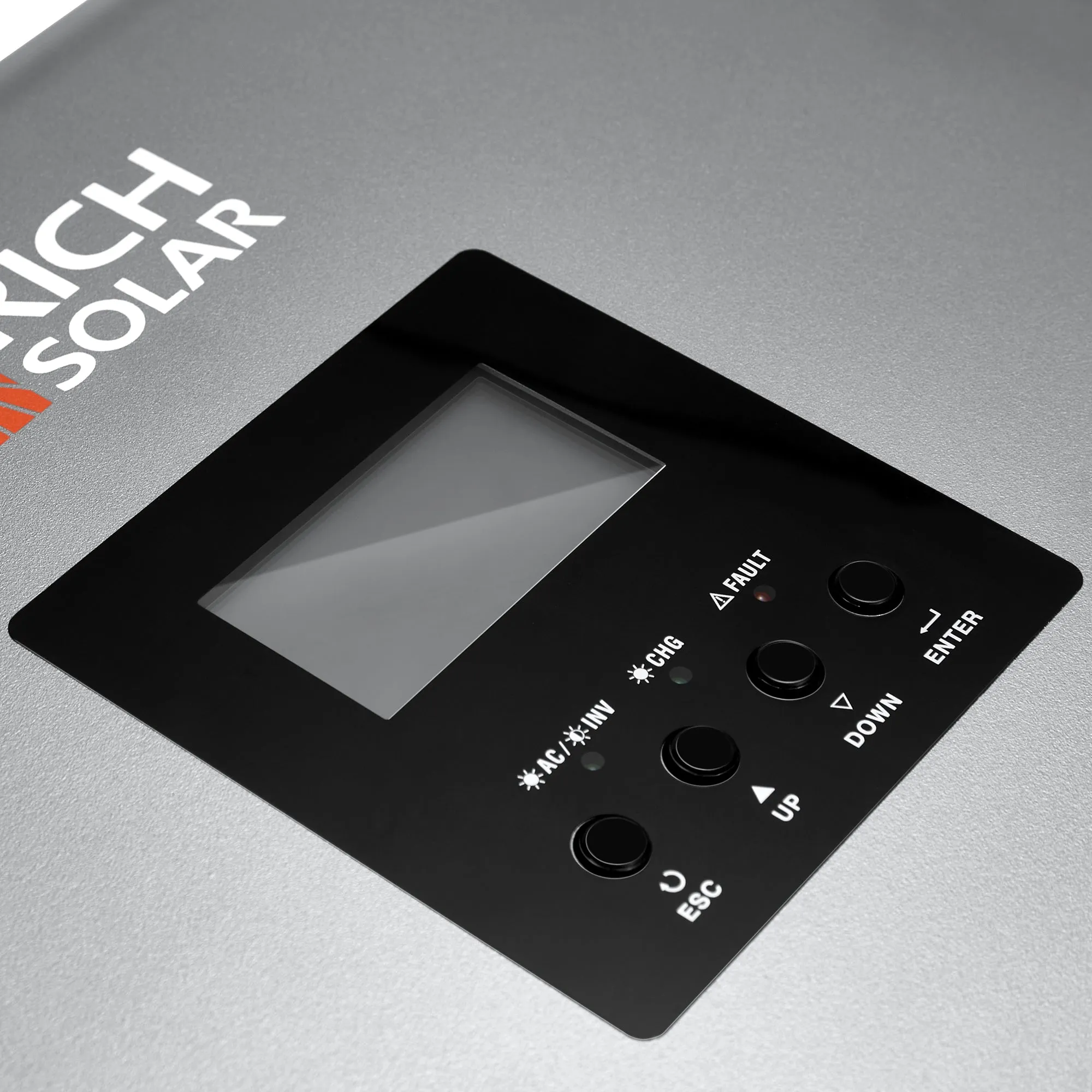

• Configurable input voltage range for home appliances and
  personal computers via LCD setting
• Configurable battery charging current based on applications via
  LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload / Over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

SPECIFICATIONS

INVERTER

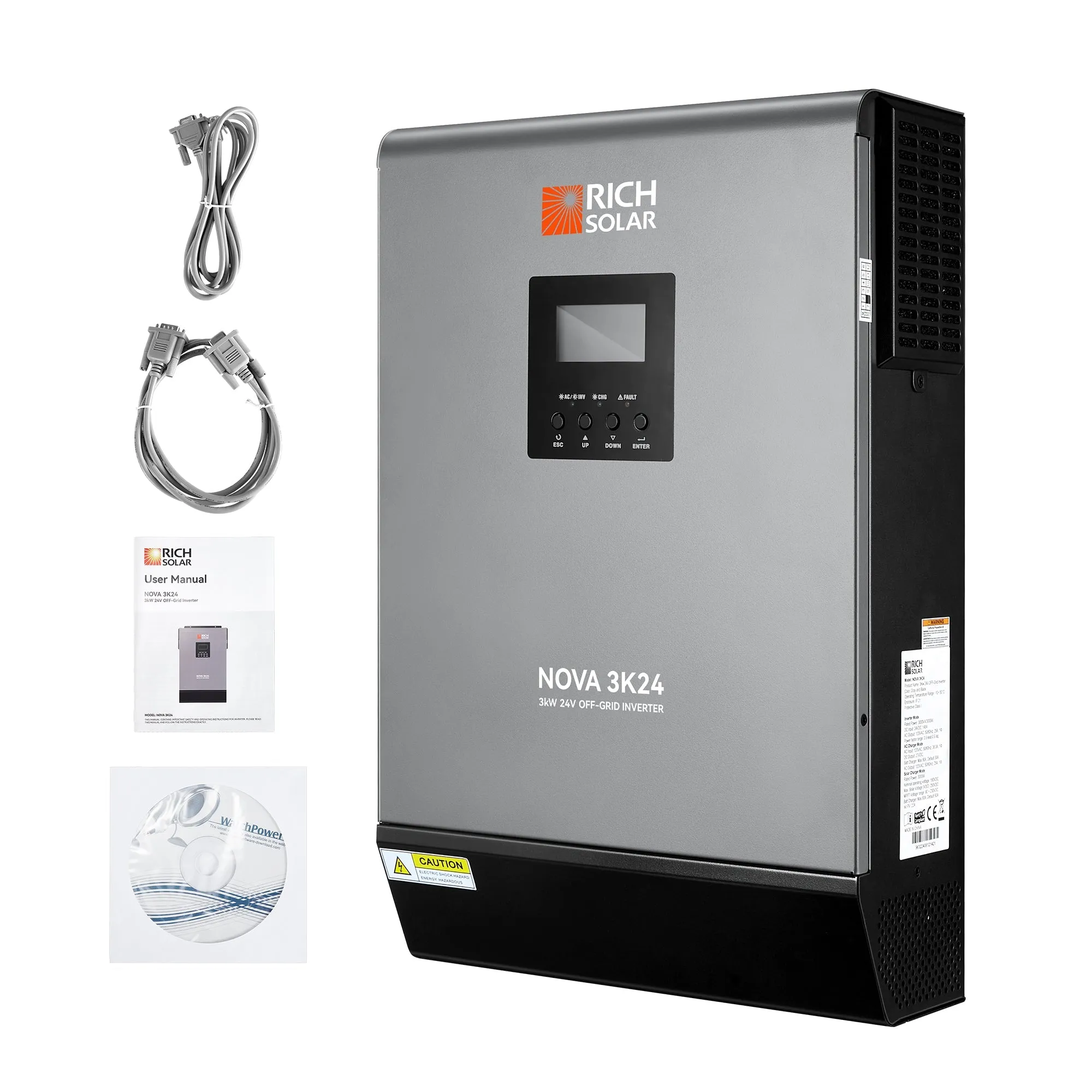

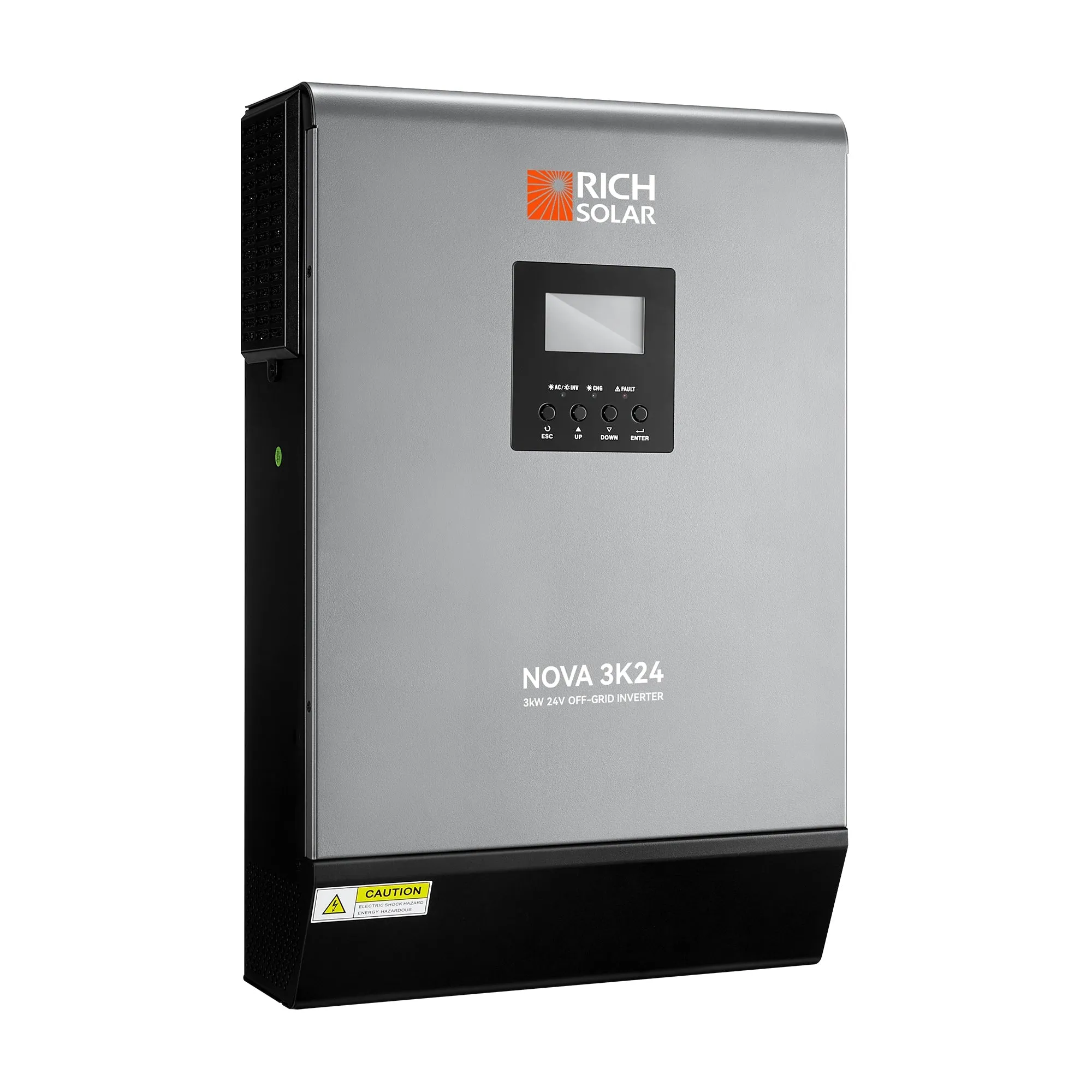

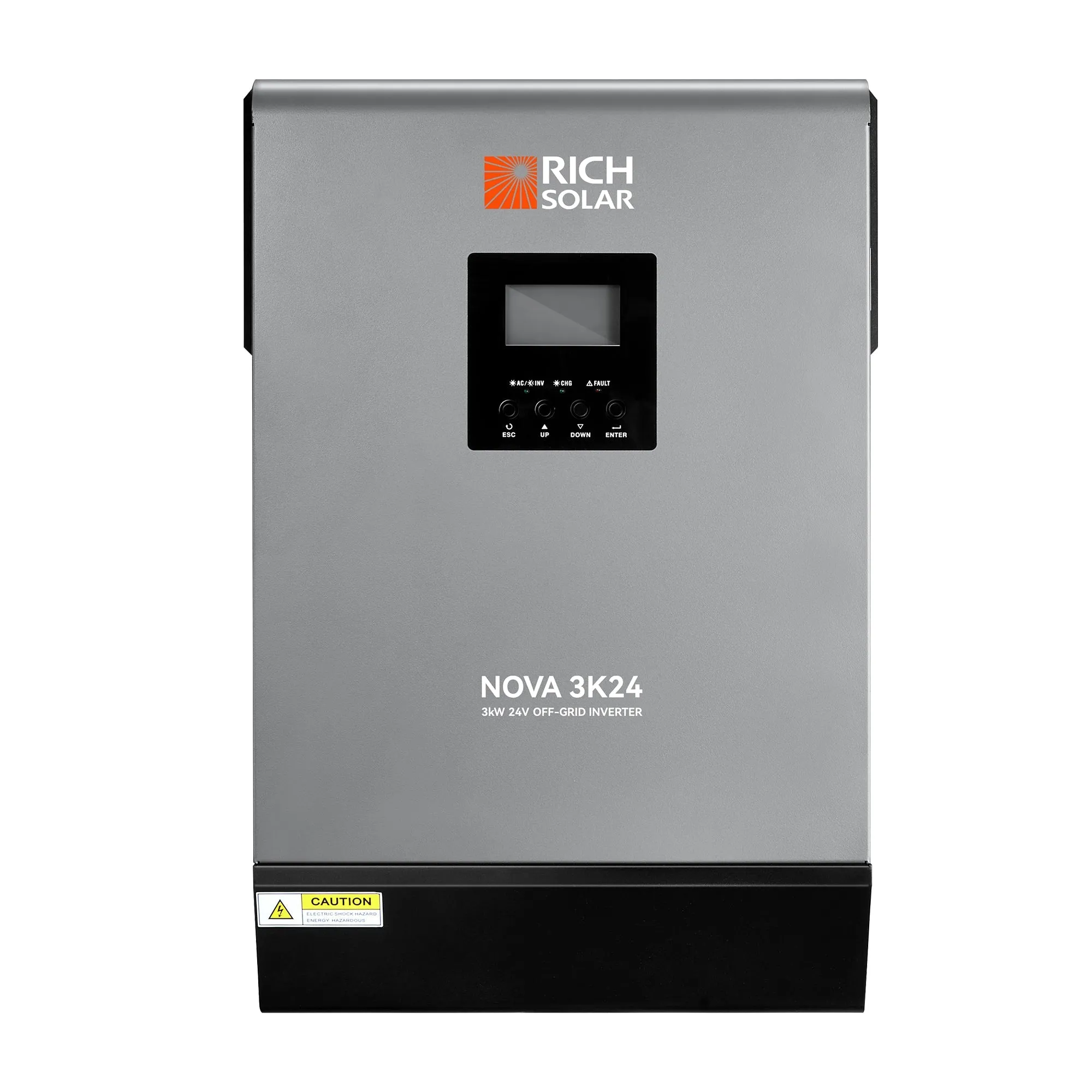

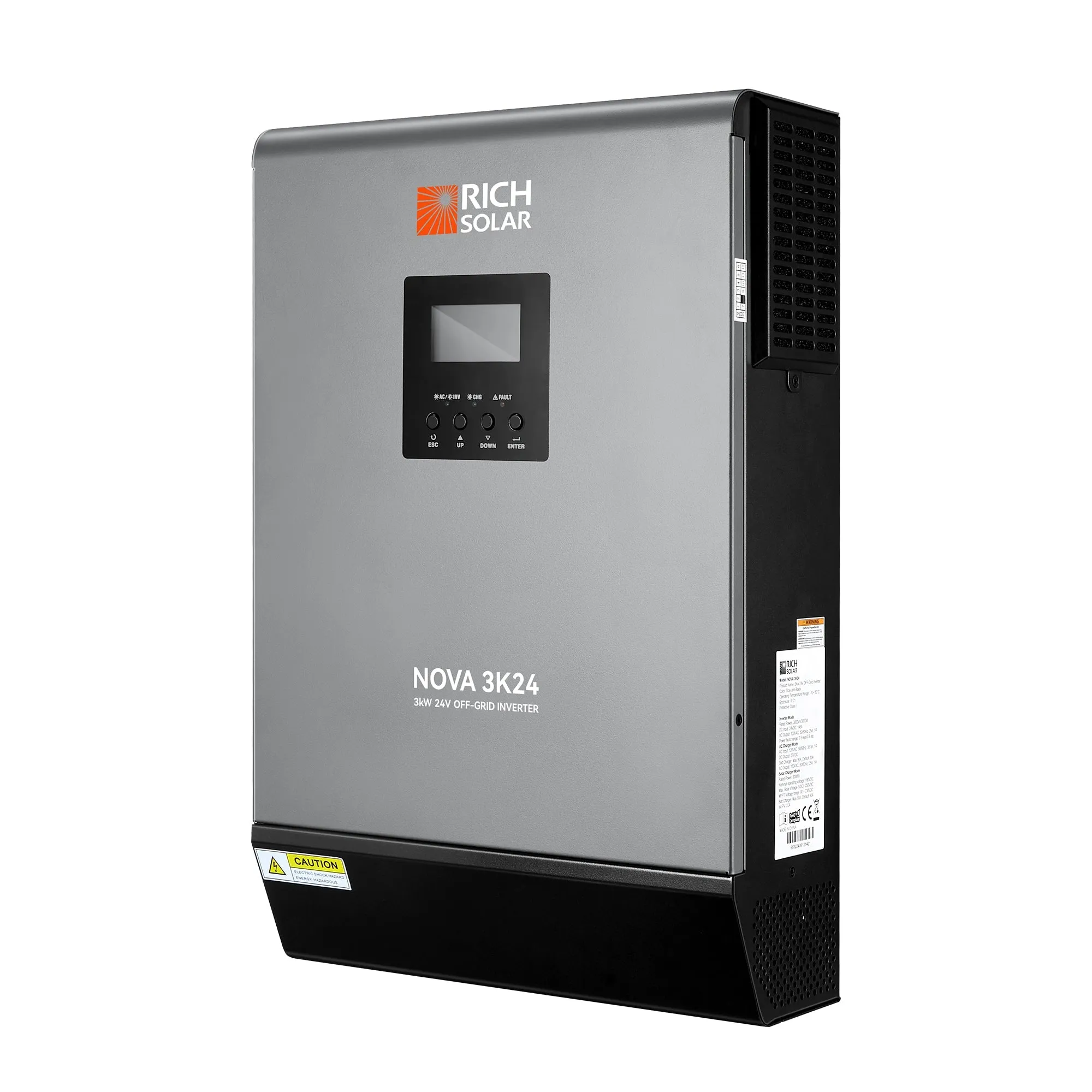

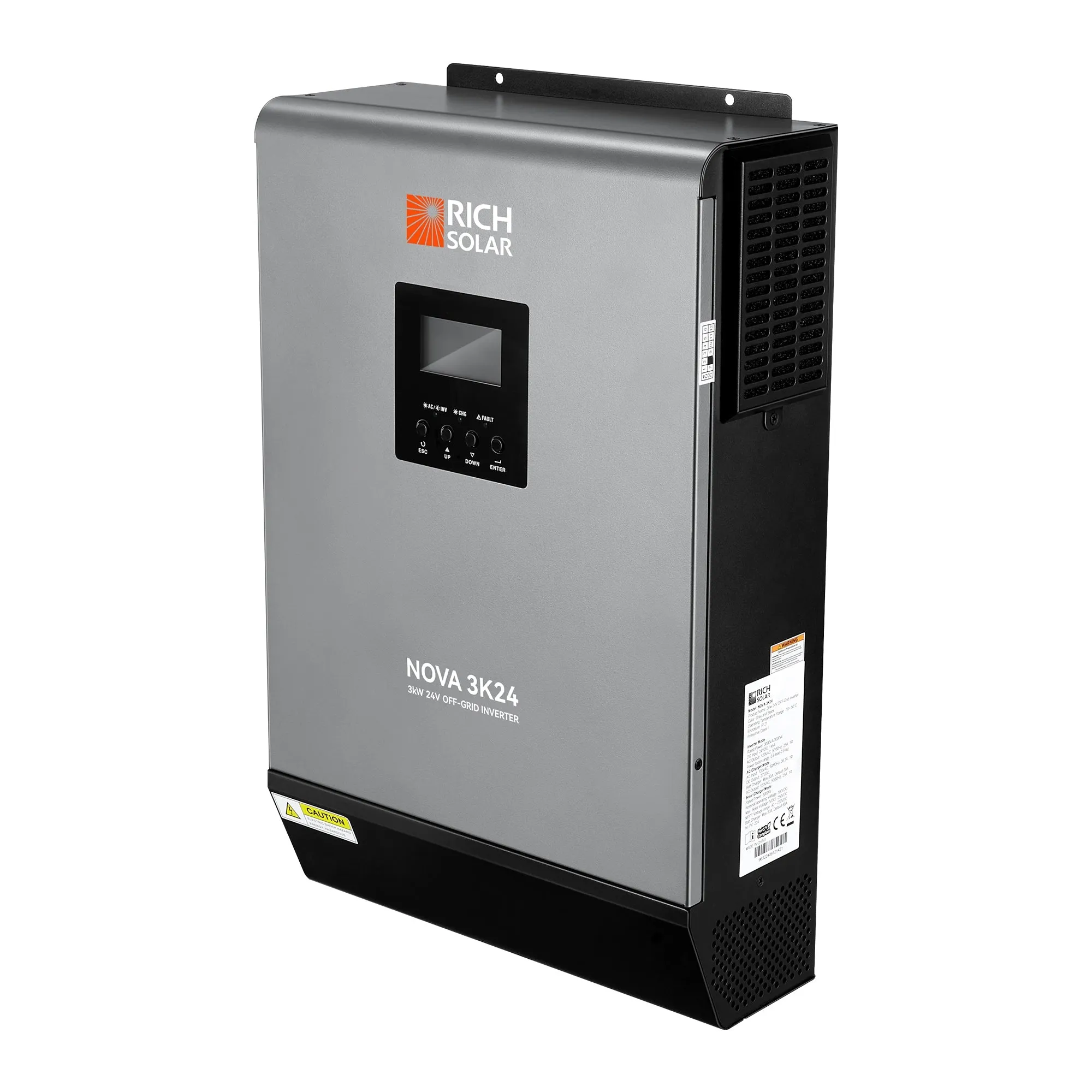

Model: NOVA 3K24
Rated Output Power: 3KVA / 3KW
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 120 VAC±5%
Output Frequency: 60Hz / 50Hz
Peak Efficiency: 91%
Surge Capacity: 2* rated power for 5s
Nominal DC Voltage: 24 VDC

SOLAR INPUT

Max. PV Array Open Circuit Voltage: 250 VDC
PV Array MPPT Voltage Range: 90 VDC~230 VDC
Max. Input Current: 18A

PHYSICAL
Dimension (D*W*H): 5.6*12.1*18.8in (142.4*307.8*477.6mm)
Net Weight : 26.5lb (12kg)
